• Division
  • Question
  • DASH CAM
    What is the Smart Motion Detection?


    During the Parking:



    When parking mode is ON, the dash camera records at 10fps.

    When parking is OFF, the dash cam continuous recording at 30fps



    When parking mode is ON and motion detection is OFF, the dash camera continuous the recording at 10fps.

    When parking  mode is ON and the motion detection is ON, the dash camera starts the recording at 10fps  only when there is movement detected.




  • DASH CAM
    What is the Parking mode ?



    Parking mode means that if you do not drive the car and the parking condition to record and store for a long time.

    In the case of a product which uses a 3-wire constant power cable, if the ACC power is cut off after parking the car, it will enter the parking mode right away.

    When entering the parking mode, the dash camera recording frame (FPS) is automatically changed from 30 FPS to 10 FPS,

    In other words,  the parking mode can be recording to 3 times than normal (driving) mode.


  • DASH CAM
    Which cable should I use when using the GT700 TV-OUT function?



    TV-OUT connection cable PIN MAP is as follows.











    After connecting the cable, touch the 'TV-OUT' button on the main screen to output the image to the connected monitor screen. At this time, the LCD screen turns off.





    When touch the screen, turn off the monitor and output the image into GT700.

















  • DASH CAM
    I can not touch the LCD Screen





    When the LCD touch screen does not work well, you can calibrate the LCD touch screen in the following way






    [MENU]→[SET UP] →[LCD] →[Calibration] or


    Press the power button three times more than 0.5 seconds at the main screen.

    If so, you can enter the [Calibration]



    Follow the instructions on the screen and tough the center of the cross in order.







  • DASH CAM
    What is the LBP?





    It is equipped with the voltage management function which is installed to protect the battery of the customer who uses the LBP and the dash camera.



    LBP is the implication of Low Battery Power.

    The dash camera is a function that protects the battery of the customer by cutting off the power by oneself.

    (The purpose of saving the minimum power of the vehicle battery so that the vehicle can be started)



    In the case of LBP voltage management system, it can be set in five steps of 11.3V, 11.5V, 11.8V, 12V, and 12.3V,

    The dash camera will be turned off when you keep it below the reference value for 5 minutes.







    Configurable voltage (V)

    Power Off

    11.3 V

    11.5 V

    11.8 V

    12 V

    12.3 V









  • DASH CAM
    What kind of recording mode GNET Dash cam have?



    We have 4 type of Recording mode.


    Normal Recording

    - It starts recording when power is connected

    - Security LED flickers once every 2 seconds

    Event

    Recording

    Impact Mode

    - If there is impact or shock, the REC LED will flicker and record in event mode

    - After event recording is finished, it will be automatically changed to normal recording mode.

    Parking Mode

    - When the ACC voltage is released, the parking mode automatically operates in 10 seconds.

    - It is recorded with 10 frame in order to extend recording time

    - Security LED flickers every 4 second

    - If it connects with ACC voltage, it will switch to normal recording mode.

    Motion detection

    Mode

    - Under parking mode, it records if there is any movement within a range of 3M

    - Security LED will blink faster

    - If the movement finishes, it returns to parking mode again

  • DASH CAM
    What is the G-Sensor?

    G sensor (Gravity Sensor), is a sensor that recognizes movement or tilting of an object due to gravitational action of the Earth.





    X axis: Shock and acceleration (+) and deceleration (-) in front and rear are displayed in red.



    Y axis: Shock from left (+) and right (-) side and left and right movement (left turn, right turn) are displayed in green.



    Z axis: Shows the shocks in the top (skyward +) and bottom (ground direction -) in blue.









  • DASH CAM
    Which models are compatible with the GT700 SSD?
    The GT700's external storage can support up to 2TB, internal M.2 SSD.

    Max size  2280 (22mm x 80mm) is available.

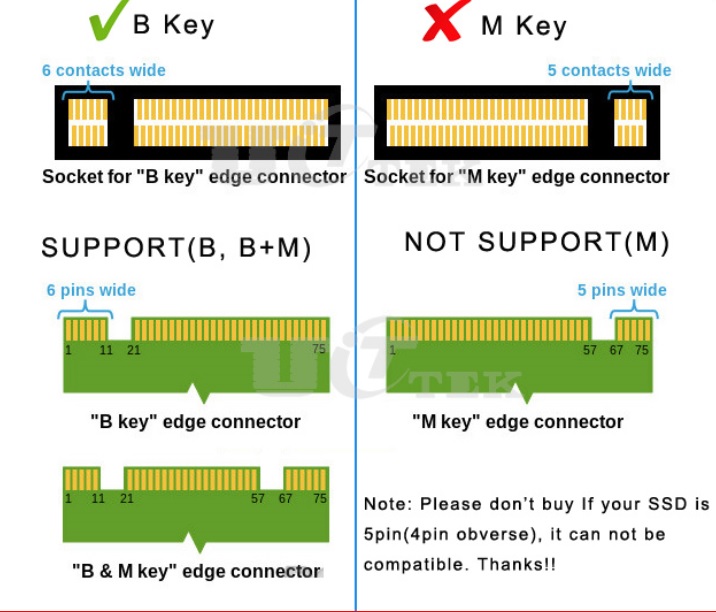

    Please check the M.2 interface type before purchasing SSD.

    (SATA3 B, B + M Key compatible / M Key not compatible)

    Recommend model:
    1. Samsung 850 EVO M.2 (2280): 120GB ~ 1TB.
    2. Micron Crucial MX300 M.2 (2280): 275GB ~ 1TB.

    ※ M.2 interface compatible specification




  • DASH CAM
    How to use products stably.

    1. Swipe dash cam lens regularly. Fingerprint and dust on lens are one of issue to make Blurred video quality.

    2. Please check if you dash cam is properly working or not. It may not correctly work from errors such as memory card faulty and poor contact of cigar jack.

    3. If user use constant power cable, please check and format the memory card once in a week.

      - Basically, our products support format –free function for user’s convenience.

        But, it may strain for memory card while it is reading / writing. Also, the files in memory card get failure by excessive work.

     4. Please separate power jack when you do not use car for long time.

       - The trickle consumption even if car engine is off from car battery will cause out of battery sometime.

  • DASH CAM
    Keep repeating Voice from camera.

    - If you have a problem with keeping repeating voice guidance, you need to check SD card whether it is faulty our not.

    So, take out memory card and insert onto PC to format SD card.

    For safety of device, user should check memory card every two weeks.
