PRODUCT VIEW
※ The image of components may be different from the real components.
※ Specifications and Components may be change without notice for improving quality.
※ Genuine Memory Card is Highly Recommended
Night Vision
Night Vision Technology
ADAS is a safe driving assistance system for the driver's safe driving environment when shooting at night or in a dark environment with lacking light.
※ There may be differences depending on the usage environment

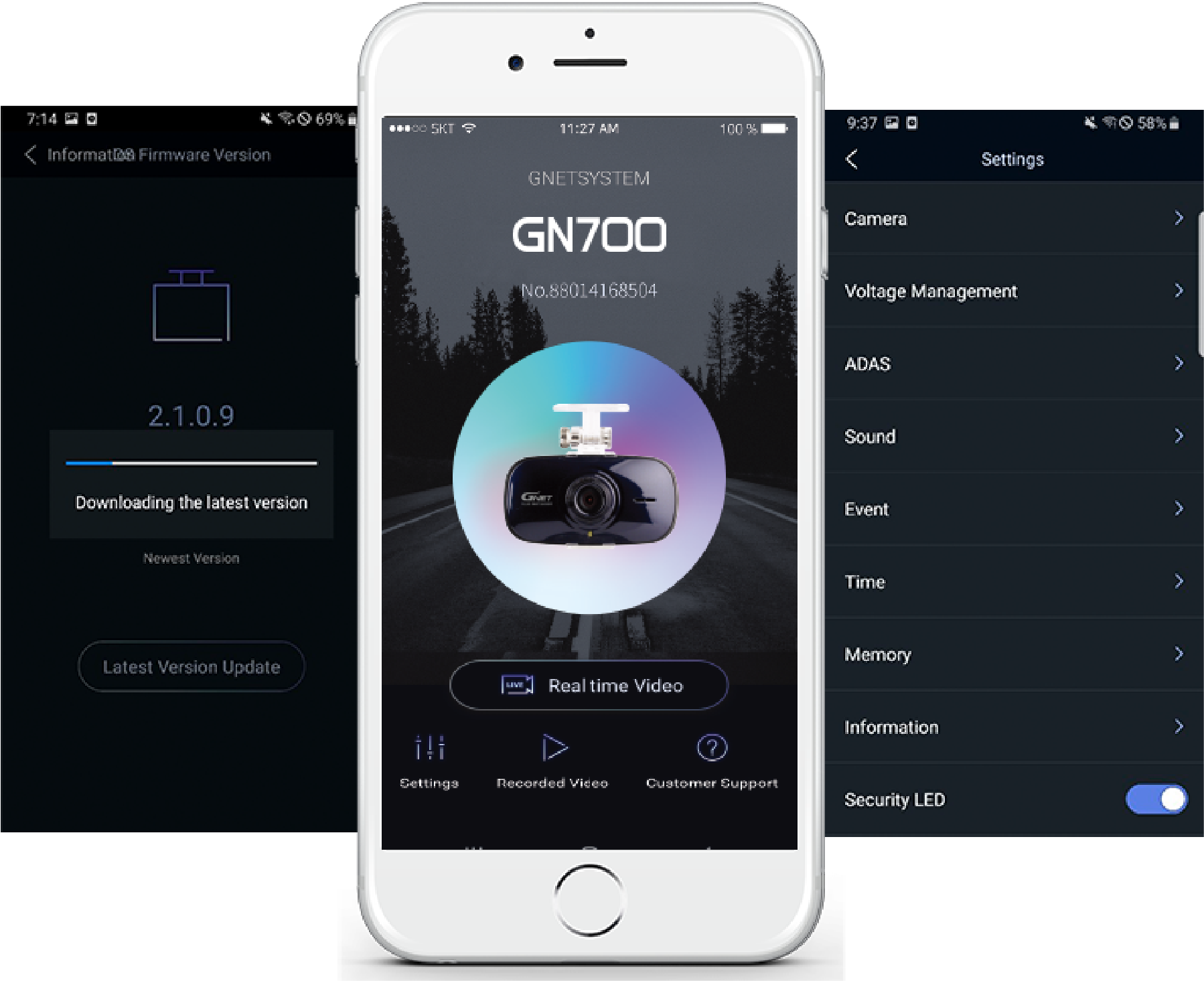

GNET APP
User-friendly GUI
User convenience has been further upgraded using intuitive icons for anyone to operate convenient
User-focused Firmware Upgrade
After accessing the firmware configuration by APP, the latest firmware can be automatically searched for and downloaded.
All the features you need at once! Easy and convenient GNET APP
You can easily set up device registration, real-time video setup, recorded video list, and customer support through the mail screen.
Customized configuration by APP
Using the Smartphone APP, you can upgrade the firmware and play video as well as configure various settings.
How to Upgrade the firmware
*You can only connect your smartphone with WiFi dongle connected to the black box (WiFi dongle sold separately)
*Disable IOT/WiFi feature when CLOUD is enabled
LBP FUNCTION
It is an intelligent SAFE GUARD function that automatically shuts down recording when the voltage falls below a specified voltage and cuts off the power to protect the battery of the vehicle.
LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )
Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking
Division |
Configurable Voltage (V) |
||||
|---|---|---|---|---|---|
| Power Off | 11.3 | 11.5 | 11.8 | 12 | 12.3 |
FUNCTION
High Temperature
Test Pass
G-Net has been passed the high-temperature test. Differs from other brand dash cameras which shut down the power becasue they can not withstand at high temperatures.
Memory Card Automatic Recovery And Self-format
Unlike other companies' black boxes, which require users to format periodically, JDR's own file system with excellent reliability is applied for convenient use without regular format.
Built-in Voice Guide
And Microphone
It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.
Security Led
Function
It is equipped with intelligent security LED function to prevent crimes that can parking terrorism and theft. With clear view, it detects movement in parking mode and starts recording automatically.
External
GPS
You can check at a glance the data image received from the GPS while driving.
* External GPS is optional
(sold separately)
Various
Recording Modes
Parking Surveillance / Motion Detection The event recording is automatically recorded for a certain period of time when the impact is detected on the vehicle in various recording modes.
GNET PC VIEWER
Easily play and check recorded video with a viewer program for PC
It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.
Specification
Features |
Specification |
|---|---|
| Image Sensor | Full HD CMOS Sensor |
| Audio input | Built-in Microphone |
| Video Compression | H.264 |
| Audio Compression | ADPCM |
| Resolution | Full HD 1080P(1920x1080) |
| FPS | Max. 30fps |
| Wi-Fi (Optional) | Standby mode for mobile registration. |
| G Sensor | Event recording by External Shock |
| Voice Guide (Speaker) | Operation Status alarm / Voice guidance |
| External GPS Sensor | Synched with Google map, Keep track of location and Speed |
| Lens | 140 degrees |
| Viewer | Windows XP/7/8/10, Support 32Bit / 64Bit, Supported over OSX 10.7 64Bit Synchronizing Google map with PC viewer is supported over Windows7 and explorer 10 as per Google' s policy |
| Power | DC 12V - 24V |
| Allowable current of providing fuse | 3A |
| Operation Temperature | -20℃ ~ 80℃ |
| Humidity | 10~95% |
