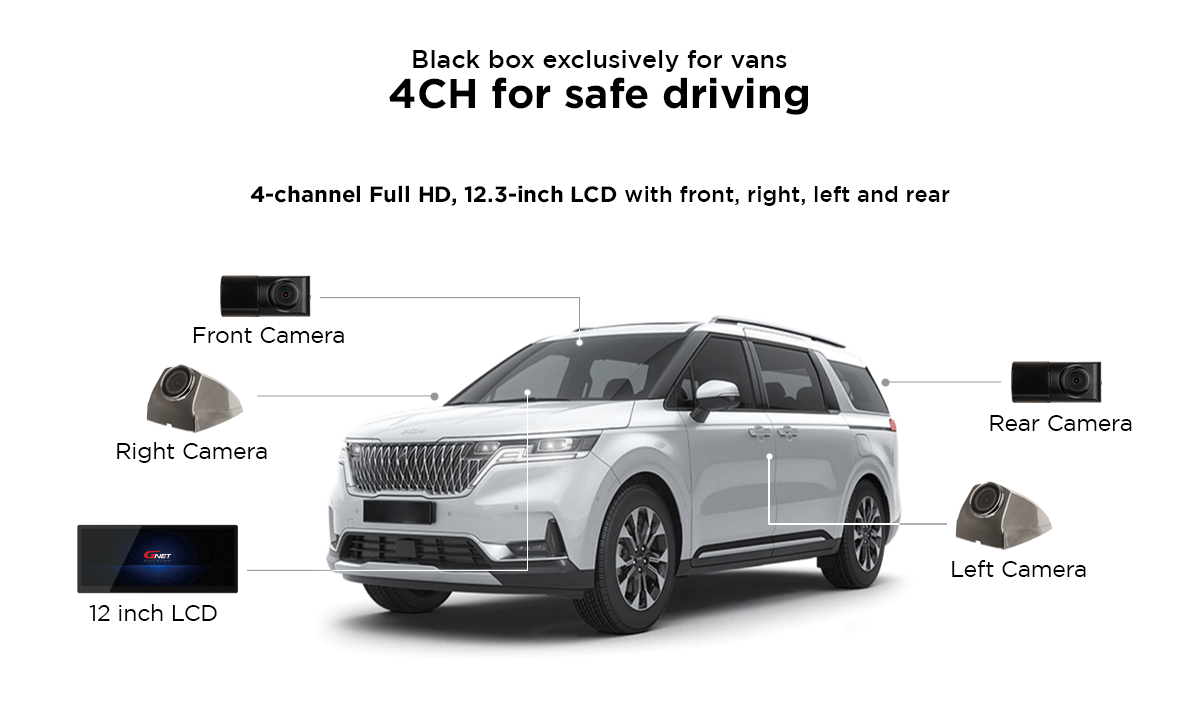

PRODUCT VIEW

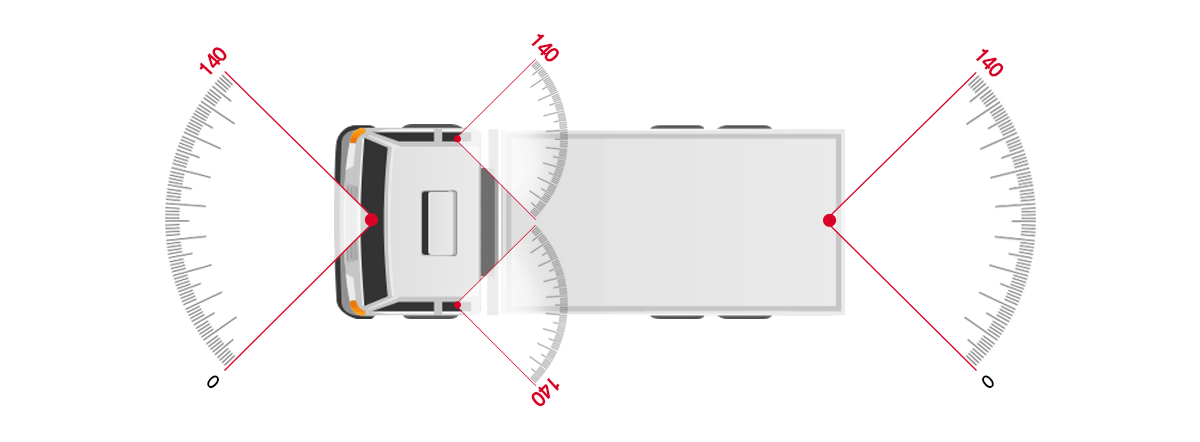

OPTIMAL VIEWING ANGLE WITHOUT DISTORTION WIDE-ANGLE LENS
Left/right distortion-free viewing angle about 140 degrees front/side about 140 degrees/rear about 140 degrees
Excessive angle of view refracts the image, resulting in side effects such as distortion and loss of distance. The zinet system records the situation of the side accident more clearly with the 140-degree angle of view, which is the optimal shooting angle without such problems. Provides footage without left/right distortion.
ADAS
"ADAS update" ADAS is a safe driving assistance system for the driver's safe driving environment.
FVSA
When the distance to the vehicle in front of your car stops by more than 2 meters, the departure icon of the vehicle in front of you with beep sound appears on the LCD screen.
FCWS
When the distance between the vehicle in front is short and the vehicle speed is high and in front is rapidly reduced within a short time. Displays a Collision Warning icon with a notification
LDWS
If you leave the lane while driving, It is indicated by a yellow or red line with warning sound. only, notification works only when the speed is over the set speed
※ Lane detection points, forward departures, and collision warning icons are only visible if the current status of the LCD is live. ADAS settings can be set only after GPS connection

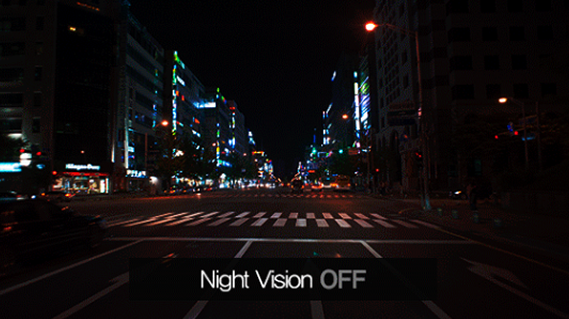

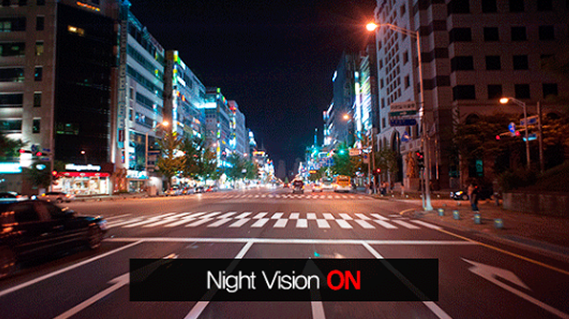

Night Vision
Night Vision Technology
Enhanced nighttime shooting in dark environments It is a safe driving assistance system for the driver’s safe driving environment in dark environments with low light or nighttime parking shooting.
Brighter and clearer quality SONY STARVIS image sensor
Equipped with a SONY STARVIS sensor that boasts much brighter and clearer picture quality even at night.
Provides crisp, bright picture quality that makes you look like you’re seeing with your eyes.
Differentiated light smear when driving at night

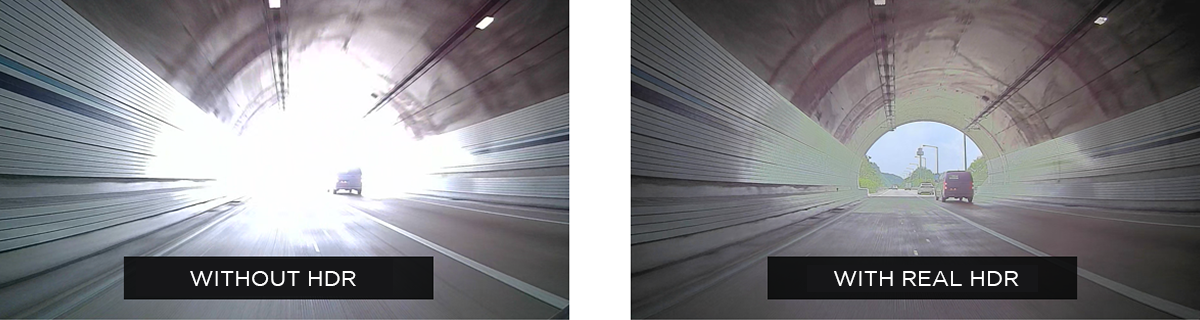

REAL HDR
Equipped with Real HDR, it shows clear recording quality in a variety of illuminance situations such as light smear
and tunnels and backlighting when driving at night.
*There may be differences depending on the usage environment.
Available for long parking records
TIME LAPSE
Time-lapse function automatically applied when entering parking mode
Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

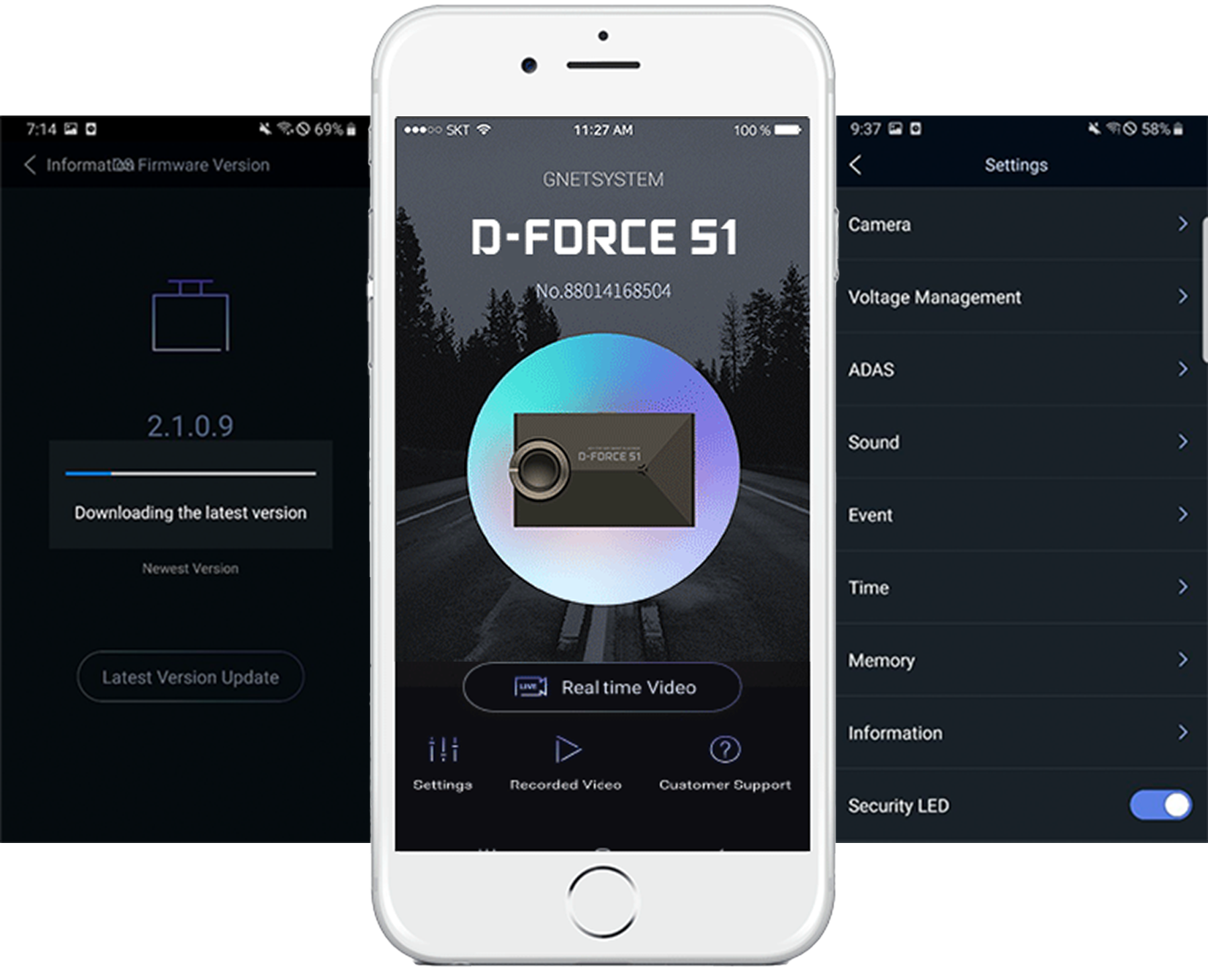

GNET APP

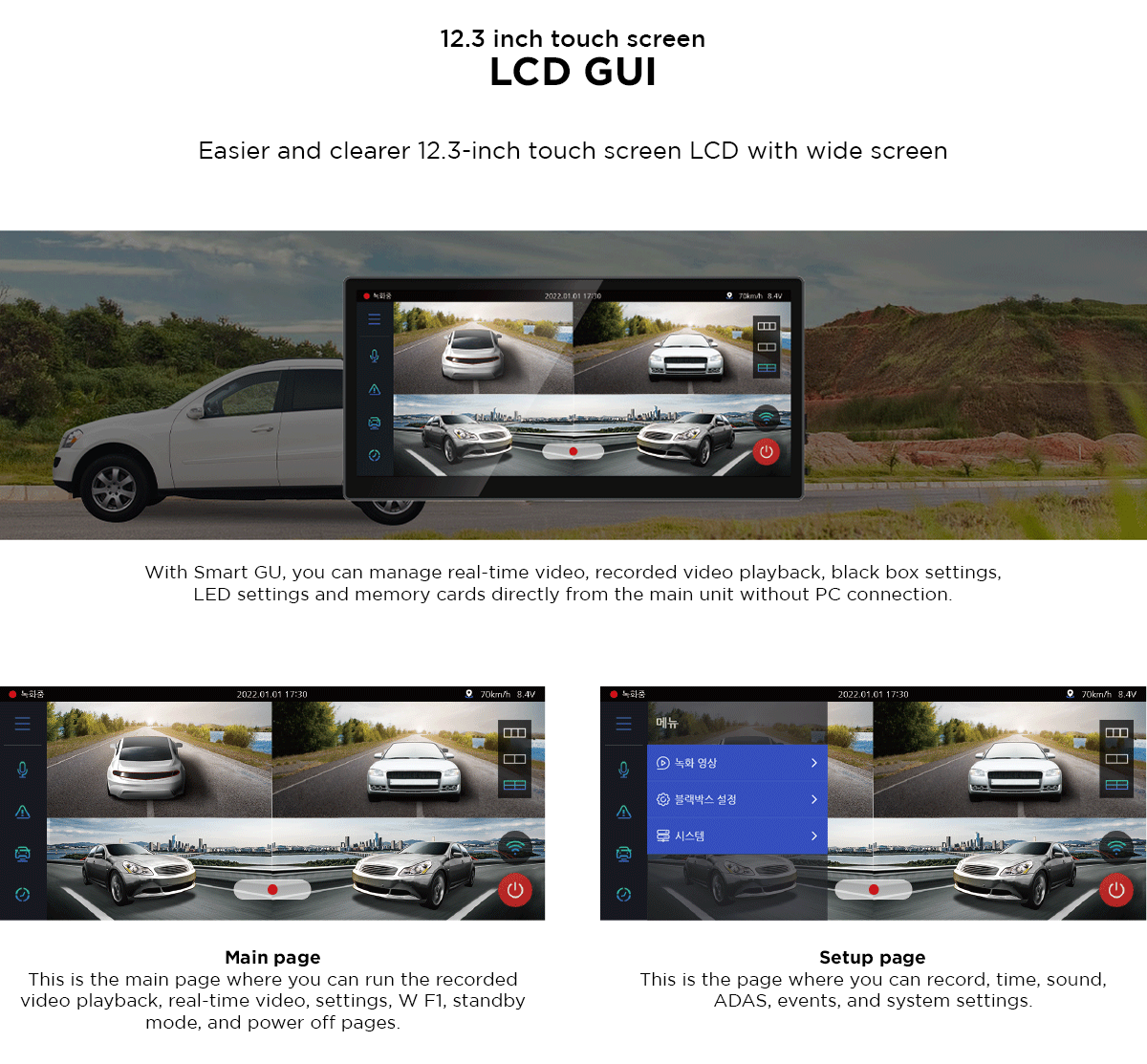

User-friendly GUI
User convenience has been further upgraded using intuitive icons for anyone to operate convenient
User-focused Firmware Upgrade
After accessing the firmware configuration by APP, the latest firmware can be automatically searched for and downloaded.
All the features you need at once! Easy and convenient GNET APP
You can easily set up device registration, real-time video setup, recorded video list, and customer support through the mail screen.
Customized configuration by APP
Using the Smartphone APP, you can upgrade the firmware and play video as well as configure various settings.
How to Upgrade the firmware
*You can only connect your smartphone with WiFi dongle connected to the black box (WiFi dongle sold separately)
*Disable IOT/WiFi feature when CLOUD is enabled
LBP FUNCTION
It is an intelligent SAFE GUARD function that automatically shuts down recording when the voltage falls below a specified voltage and cuts off the power to protect the battery of the vehicle.
LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )
Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking
Division |
Configurable Voltage (V) |
||||
|---|---|---|---|---|---|
| Power Off | 11.3 | 11.5 | 11.8 | 12 | 12.3 |
FUNCTION
High Temperature
Test Pass
G-Net has been passed the high-temperature test. Differs from other brand dash cameras which shut down the power becasue they can not withstand at high temperatures.
Memory Card Automatic Recovery And Self-format
Unlike other companies' black boxes, which require users to format periodically, JDR's own file system with excellent reliability is applied for convenient use without regular format.
Built-in Voice Guide
And Microphone
It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.
Security Led
Function
It is equipped with intelligent security LED function to prevent crimes that can parking terrorism and theft. With clear view, it detects movement in parking mode and starts recording automatically.
External
GPS
You can check at a glance the data image received from the GPS while driving.
* External GPS is optional
(sold separately)
Various
Recording Modes
Parking Surveillance / Motion Detection The event recording is automatically recorded for a certain period of time when the impact is detected on the vehicle in various recording modes.
GNET PC VIEWER
Easily play and check recorded video with a viewer program for PC
It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.

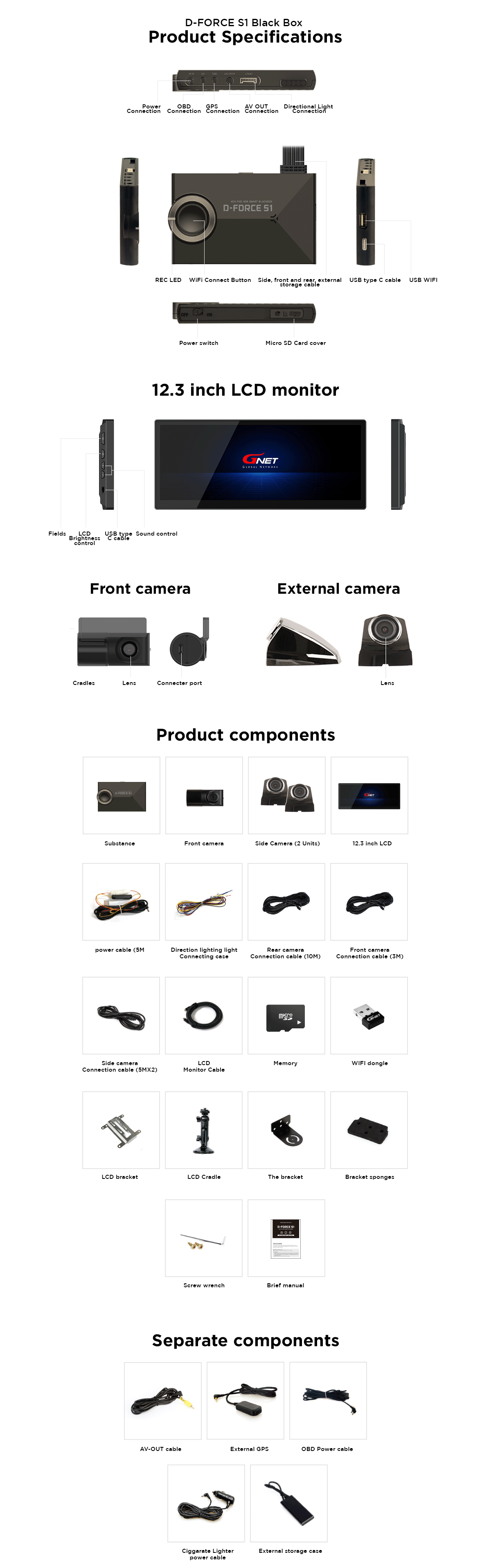

Specification
Features |
Specification |
|---|---|
| Resolution / Frame per seconds | Front : 1080P(1920 x 1080P), Max 30FPS, 140 °, Left Side : 1080P(1920 x 1080P), Max 30FPS, 140 ° Rear : 1080P(1920 x 1080P), Max 30FPS, 140 °, Right Side : 1080P(1920 x 1080P), Max 30FPS, 140 ° |
| Image Sensor | SONY STARVIS Sensor |
| Camera Connection | Front/Rear/Left/Right : TVI Type 3-wire Cable |
| ADAS | Lane Departure Warning System(LDWS), Forward Collision Warning System(FCWS), Front Vehicle Start Alarm(FVSA) |
| Night Vision | ULTRA X VISION supported |
| Time lapse | Support: Recorded in 1FPS on parking mode |
| Wi-Fi | Dongle Type : Playback and settings on a smartphone automatic firmware upgrade |
| Voltage settings | Low voltage cut-off and boot voltage settings |
| Audio | Speaker (Statement alarm and 34 voice guidance), built-in Mic |

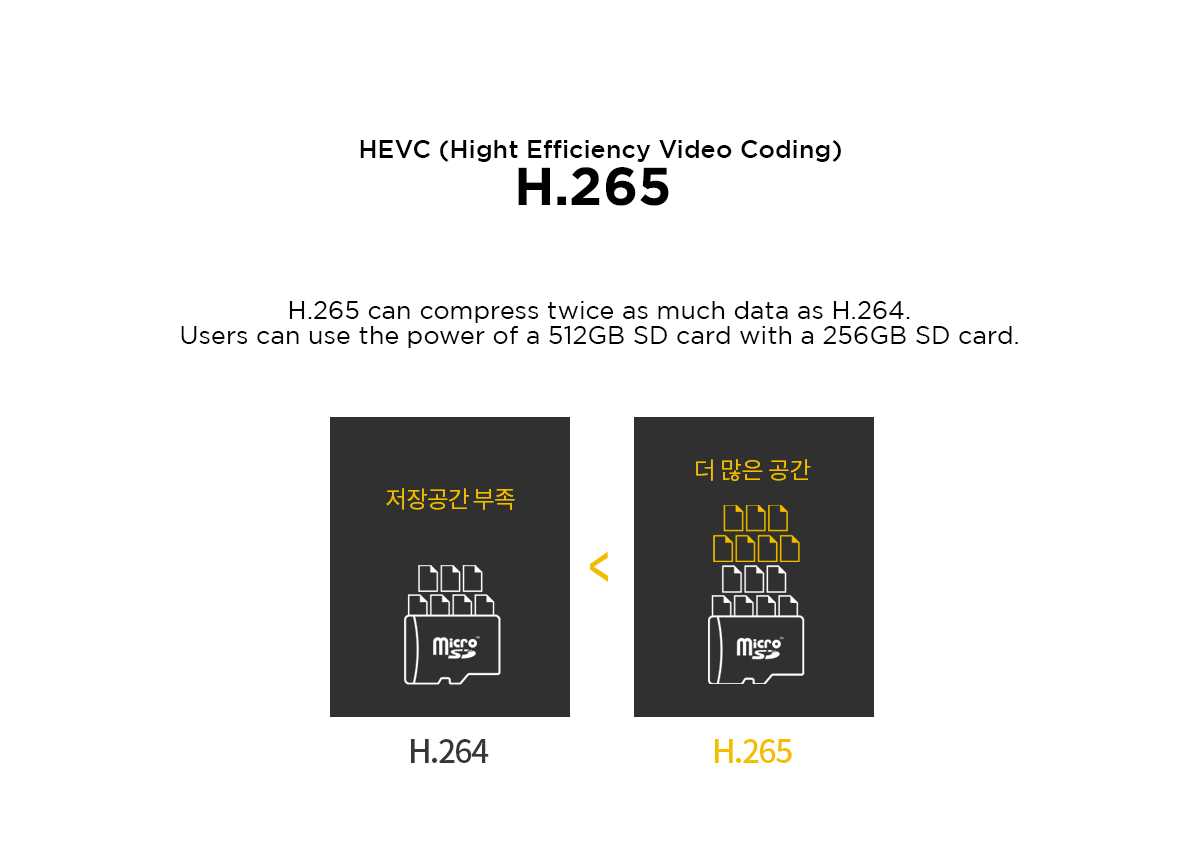

| Video / Audio Compression | H.265 (40% better data compression than H.264) / ADPCM |
| G-sensor | Triaxial acceleration sensor (recording by an external impact) |
| GPS | External GPS antenna (synchronized with Google Maps to determine location and speed) |
| Storage | Micro SD 32GB - 512GB, SD card data restoration |
| Recording | Normal mode, Event (impact) mode, Parking mode (motion detection), Voice record. |
| Power | DC 12V ~ 24V, about 6.8W based on 12V, Support OBDⅡpower supply |
| Temperature and Humidity | Operating temperature : －10 ~ 70 °C, Storage temperature : －20 °C ~ 80 °C, Humidity : 10~95% |
| PC Viewer | Win7, Win8, Win10(32Bit~64Bit) / MAC OS X supported |
| Cloud | withCLOUD®-Web supported |
